| Board size | M size (330×250mm) | â—‹ | |
| L size (410×360mm) | â—‹ | ||
| L-Wide size(510×360mm) (option) | â—‹ | ||
| E size (510×460mm)*1 | â—‹ | ||
| Component size | Laser recognition | 0402 (01005) ～□33.5mm | |
| Vision recognition | Standard camera |  □3mm*2 ～□33.5mm |
|
| High-resolution camera (option) | 1.0×0.5mm*3 ～□20mm |
||
| Placement speed | Chip | Optimum | 0.155Sec./chip(23,300CPH) |
| IPC9850 | 18,300CPH | ||
| IC*4 | 4,600CPH*5 |
||
| Placement accuracy | Laser recognition | ±0.05mm（Cpk≧1） | |
| Vision recognition | ±0.04mm | ||
| Feeder inputs | Max. 80 on 8mm T/F*6 | ||

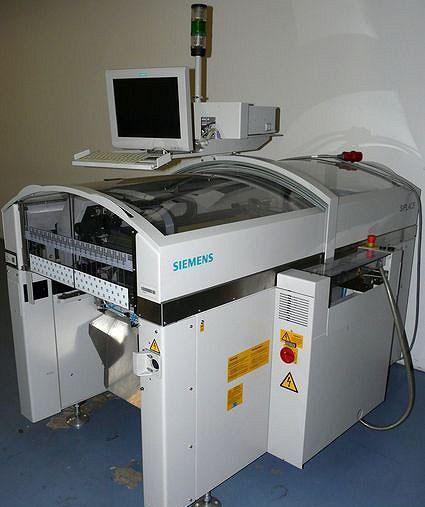

SMD placer, 2 pcs. 12x revolving head (Collect & Place) fixed at 2 different gantry,
placement rate max. 20.000 components / h,
2 Feeder tables can be placed for max. 120 Comp., with 7x12 nozzle changer for each RV-head, 1 comp. Camera for each head and 1 board camera for each gantry,
3 segments dual lane transport for 2x 50-215mm PCB width, direction L->R, right rail fixed
Placement counter: 80 Mio. comp.
With 2 feeder trollies, moveable, with rollers
SMD placer, 2 pcs. 12x revolving head (Collect & Place) fixed at 2 different gantry,
placement rate max. 20.000 components / h,
2 Feeder tables can be placed for max. 120 Comp., with 7x12 nozzle changer for each RV-head, 1 comp. Camera for each head and 1 board camera for each gantry,
3 segments single lane transport for 50-460mm PCB width, direction L->R
